Description

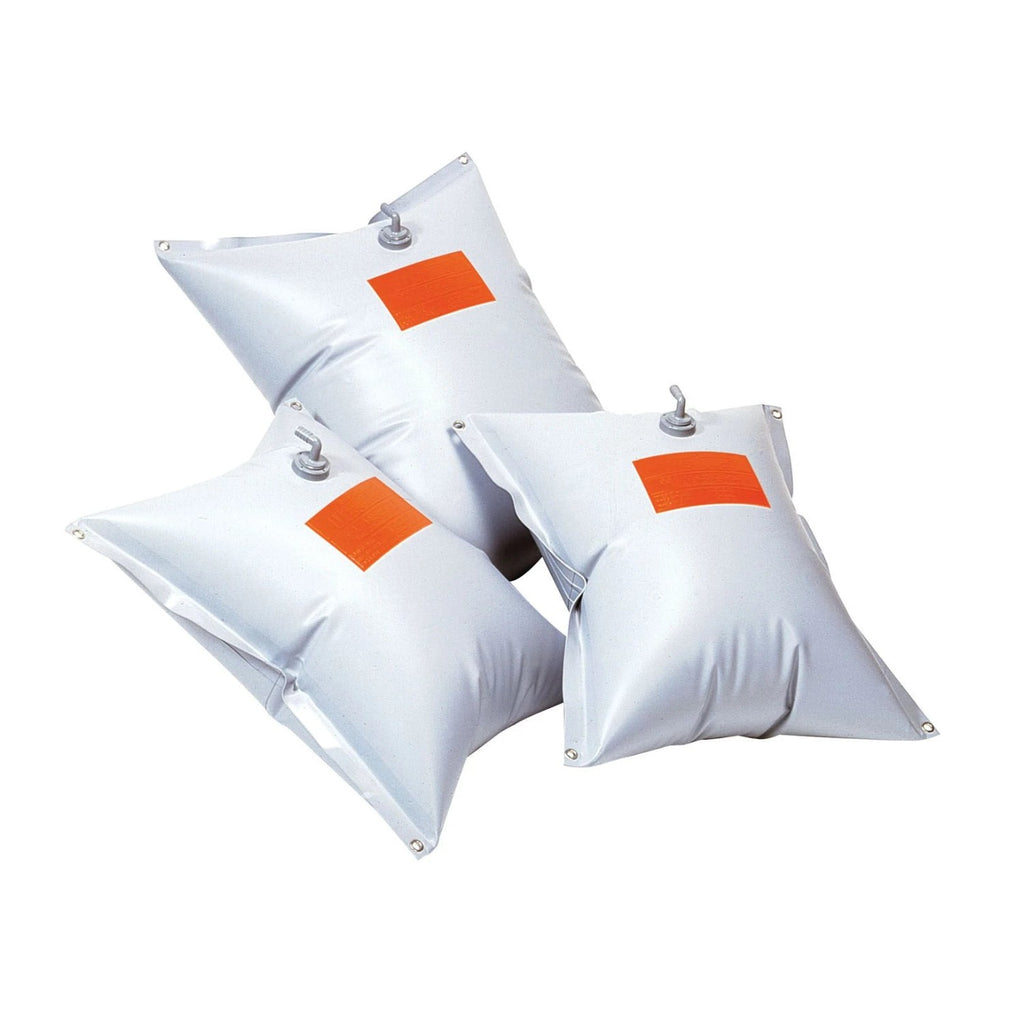

This flexible tank is suitable for temporary storage of up to 100lt of grey and black waste water. It is made from odour-tight, high-quality material.

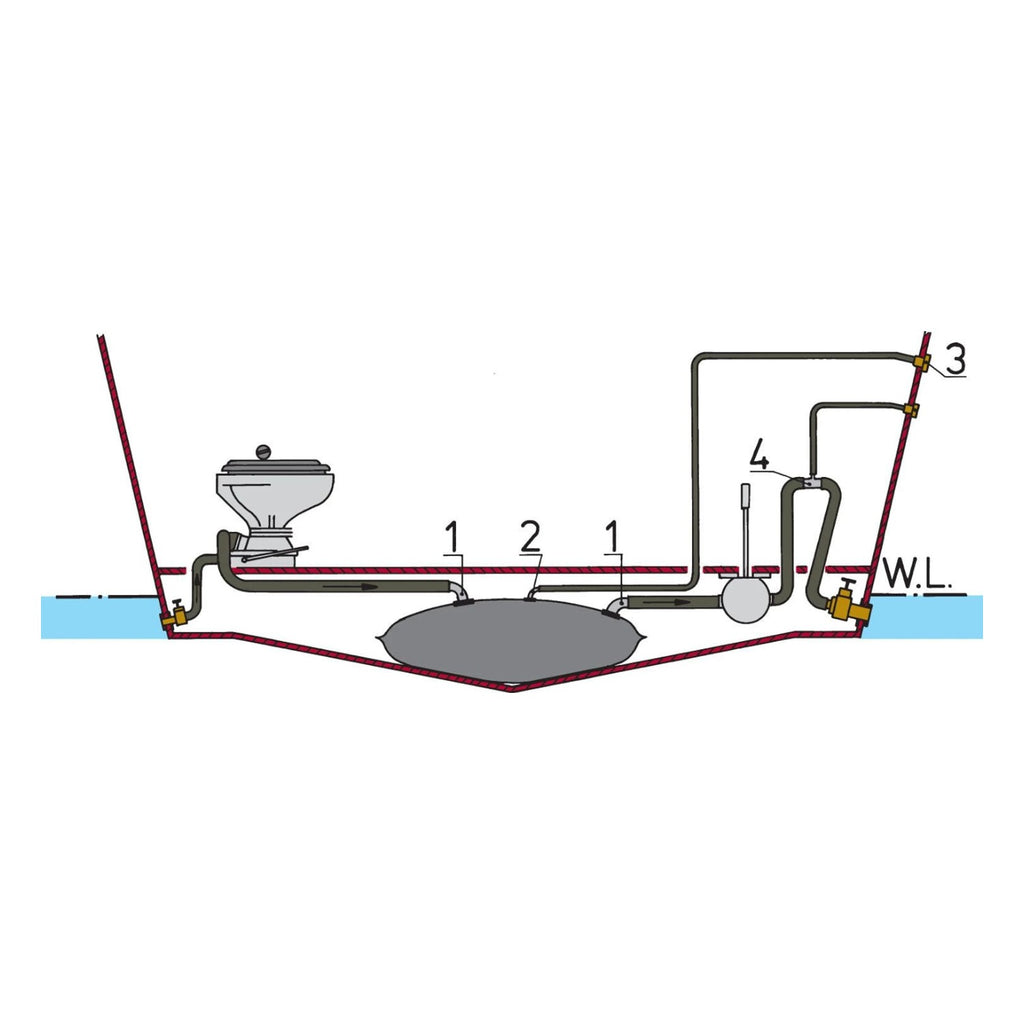

The VETUS TANKV55 flexible tank is suitable for the storage of grey and black waste water and is odour-tight. It can be installed easily and quickly. It assumes the shape of the space in which it is placed and can be positioned in places that are normally difficult to reach. There is no need for any additional installation parts. Fitting the outlet nipple and connecting the hoses for inlet and outlet are the only installations to be done. When filled, the height is approximately 30cm. We not only weld the seams, but also weld in an extra strip. This makes the VETUS flexible tank resistant to much higher pressures, especially if the contents are moving when the boat is rolling or pitching. Construction – see drawing for details:
1. Two right-angle nipples, 38mm diameter (supplied with the tank)
2. Right-angle breather nipple, 16mm diameter, already fitted.
3. Breather nipple, 16mm diameter.
4. Breather bend for anti-siphoning device. When discharge of the tank through a deck plate is required, a 38mm diameter tank connector is available as an option.
Technical data
| Manufacturer | Vetus |
| Article number | TANKV100 |
| Rigid/flexible tank | Flexible |
| Suitable for | Waste water |
| Voltage (V) | 0 |
| Capacity (litres) | 100 |

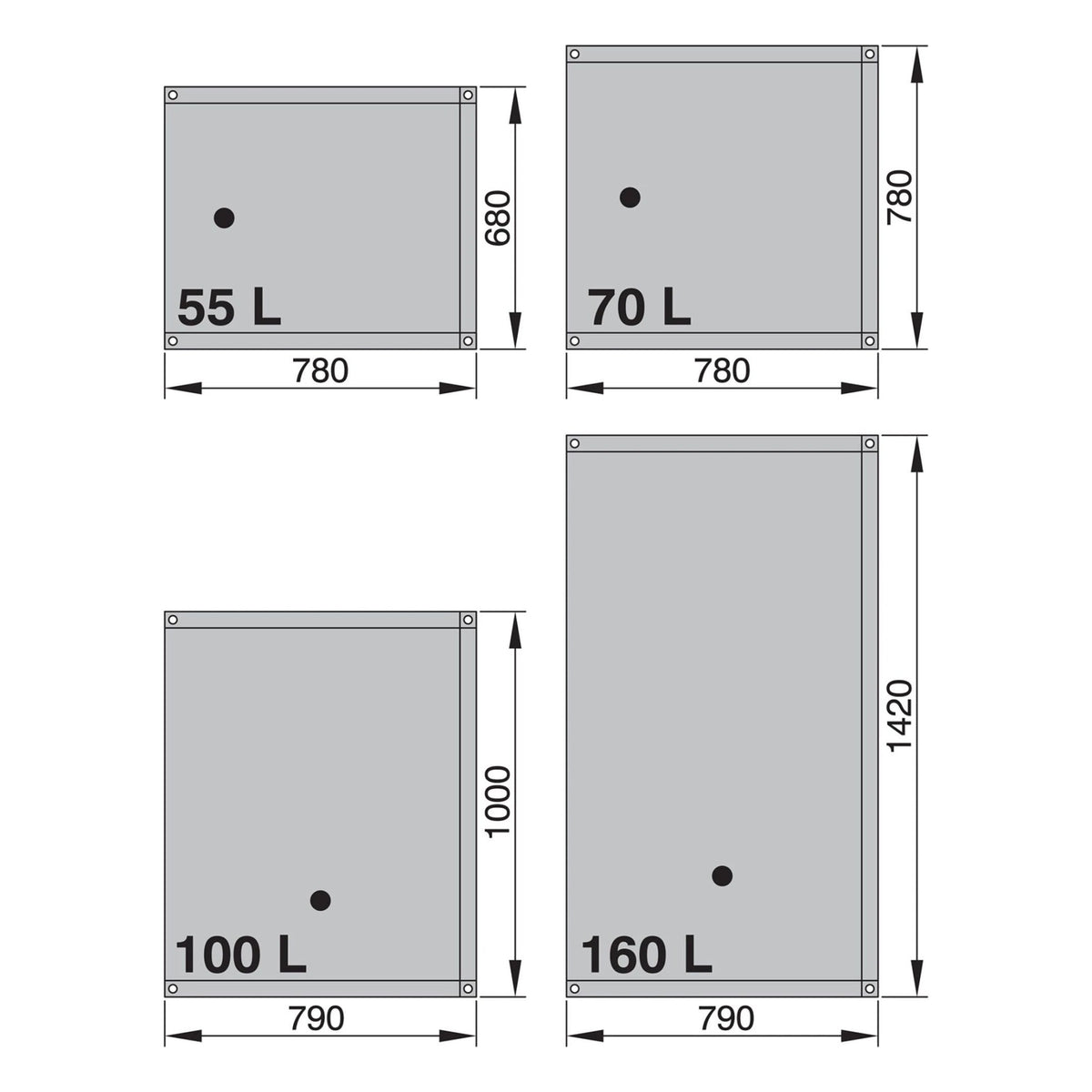

| Length (mm) | 1000 |
| Height (mm) | 790 |
| Width (mm) | 270 |
