Vetus kuro bako jungčių rinkinys: įpylimo anga 38 mm, tiekimas / grąžinimas Ø 10 mm, ventiliacija 16 mm – FTL3810B
Vetus kuro bako jungčių rinkinys: įpylimo anga 38 mm, tiekimas / grąžinimas Ø 10 mm, ventiliacija 16 mm – FTL3810B
Roll over image to zoom in Click on image to zoom
Vetus kuro bako jungčių rinkinys: įpylimo anga 38 mm, tiekimas / grąžinimas Ø 10 mm, ventiliacija 16 mm – FTL3810BVetus kuro bako jungčių rinkinys: įpylimo anga 38 mm, tiekimas / grąžinimas Ø 10 mm, ventiliacija 16 mm – FTL3810B

Vetus Fuel connection kit, filler 38 mm, supply/return Ø 10 mm, vent 16 mm – FTL3810B

VetusSKU: VEFTL3810B
Price:
€234,78
Stock:
Delivery 7–10 days
Ask a specialist

Will it fit your boat? Ask Argo Ristlaan, BMG Power Systems, +372 5452 0042.

  • In stock in Tallinn or delivered in 7–10 days
  • Free pickup: Härgmäe 5 or Haven Kakumäe (Nooda tee 8)
  • We help you choose and can install it
  • 14-day right of withdrawal, 2-year right to file a complaint

Description

The kit contains all required connections and saves considerable installation time. Suitable for use with diesel and petrol fuel.

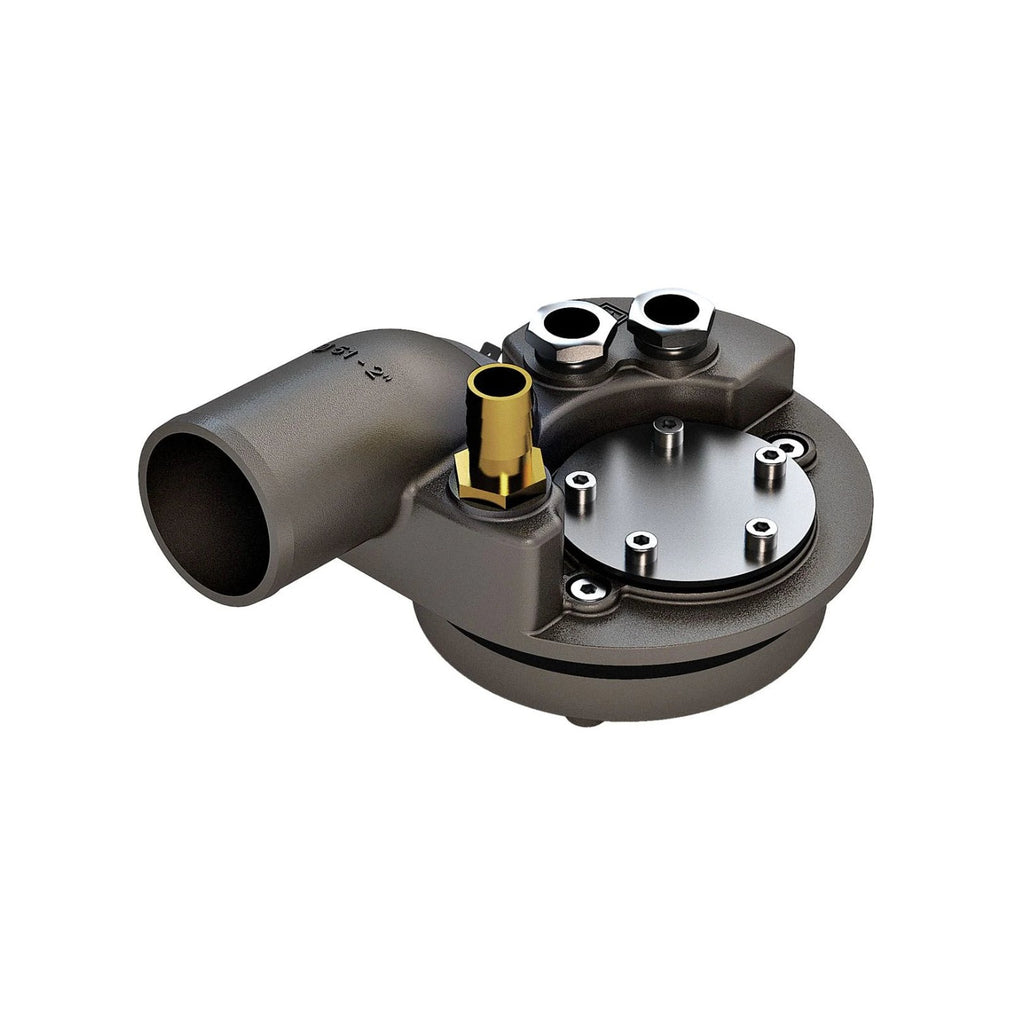

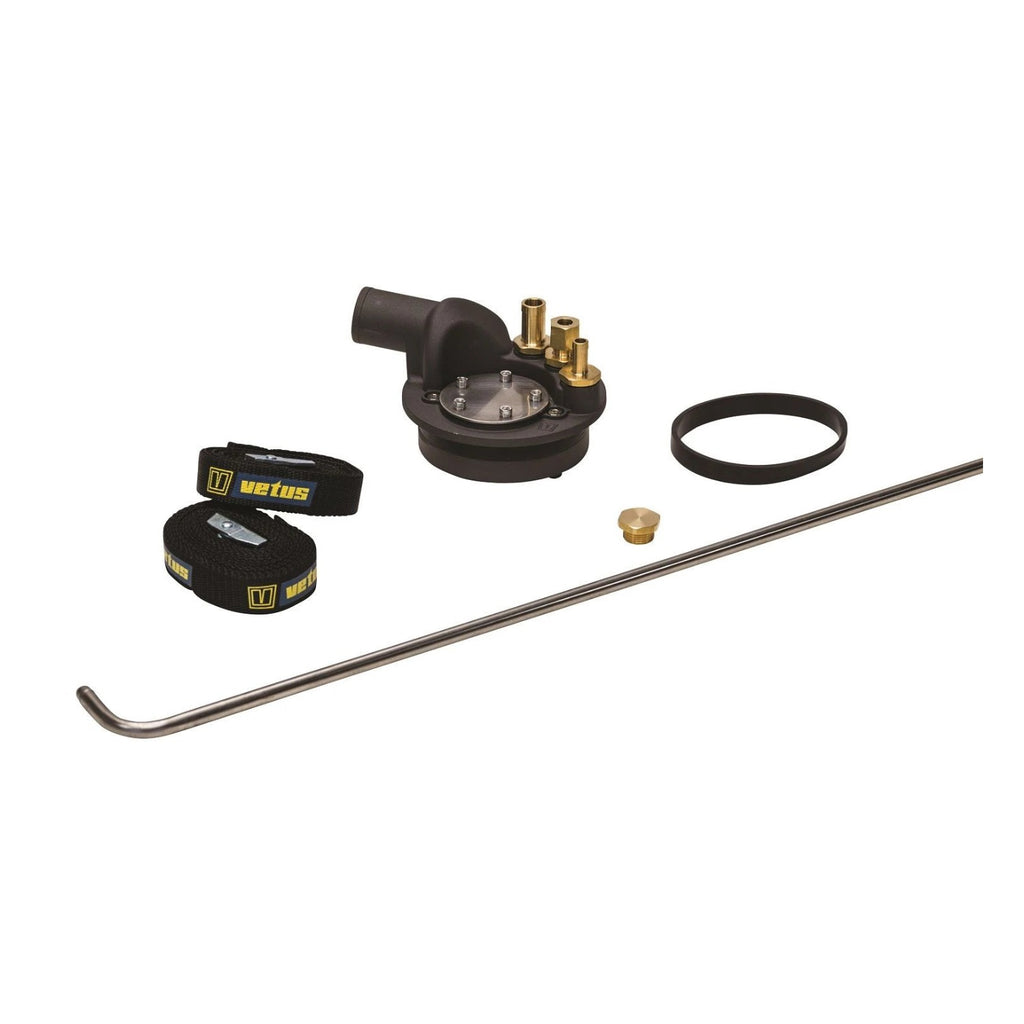

This connection kit has an anodized, salt water-resistant aluminum lid with a counter flange and a rubber seal which is tightened very easily, with just three bolts compressing the rubber seal to ensure a perfect seal. The set contains all the required connections: only a single 114mm-diameter hole needs to be cut in the top of the fuel tank. This connection kit is suitable for plastic, metal or GRP diesel or petrol fuel tanks. The following connections are supplied:

  • Hose connection for filling 38 or 51mm diameter tanks and a 16mm tank ventilation connection
  • Fuel suction pipe according to model selected
  • 8mm diameter, max. tank depth 440mm
  • 10mm diameter, max. tank depth 850mm
  • 15mm, max. tank depth 970mm
  • Fuel return for 8, 10, 15mm diameter hose
  • Mounting flange for tank level sensors (connection is suitable for sensors with a five-hole SAE flange)
  • Terminal tag 6.3mm for ground wire
  • Two mounting straps to secure tank

    • Technical data

    ManufacturerVetus
    Article numberFTL3810B
    Vent hose diameter (mm)16
    Fuel filling hose diameter (mm)38
    Fuel suction pipe (mm)10
    Suitable forDiesel tanks
