Description

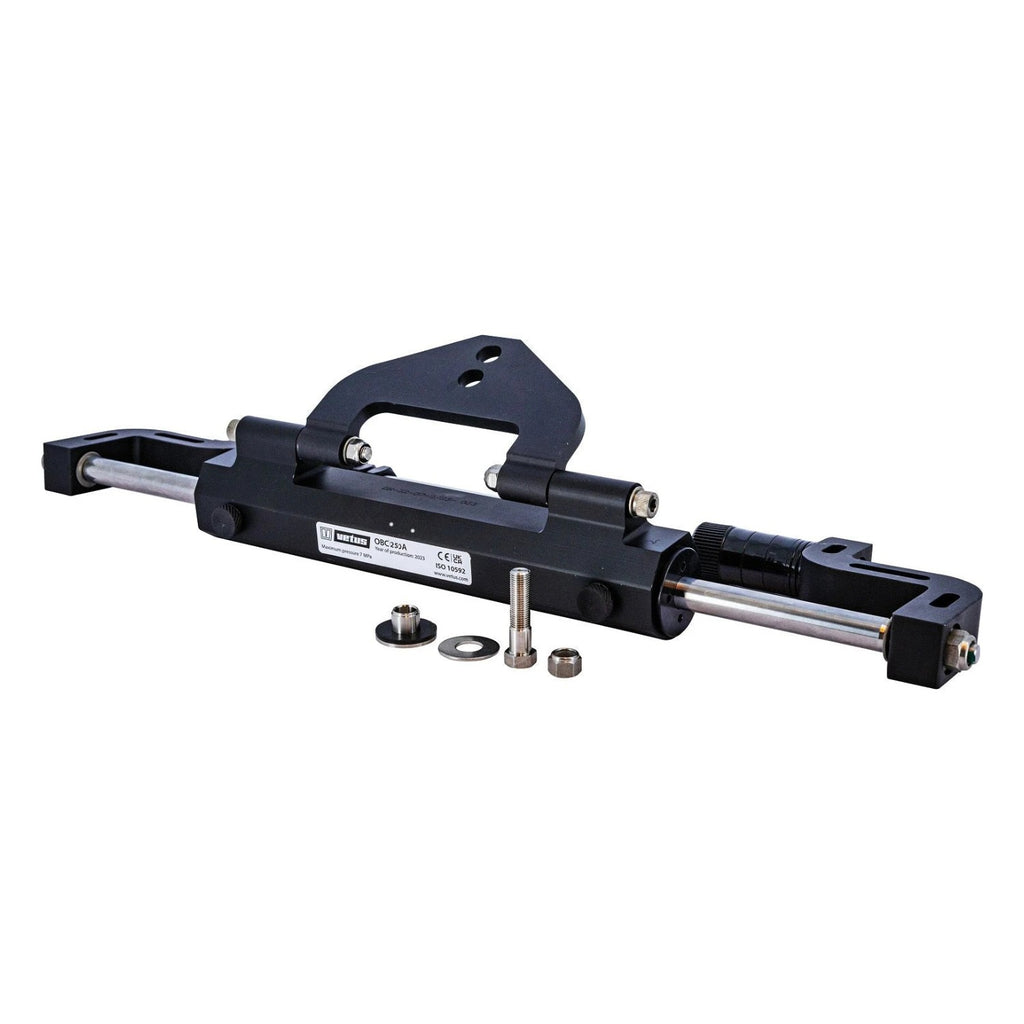

Hydraulic steering cylinder for outboard engines / z-drives up to 250 hp. Developed with marine-grade AISI 316L stainless-steel and aluminum components to bring ease and comfort while steering your boat.
This new generation of hydraulic steering cylinders has been engineered with marine-grade components with a robust design to ensure your boat stays on-course always, with excellent responsiviness and powerful steering. With the hydraulic steering the effort needed to steer your boat is reduced exponentially.
Features:
- Aluminum and AISI 316L stainless-steel components ensure superior corrosion and wear resistance
- Robust sealing system prevents the intrusion of seawater and dirt
- Balanced cylinder: same number of turns port to starboard offers a steady steering response
- Suitable for single and twin engines
- Supplied with combined Ø 10 mm hose connections and bleed nipples
Specifications:
- Stroke: 203 mm (8”)
- Displacement: 122 cc, 7.4 ci
- Weight (kg): 3,7
- Weight (lbs): 8,15
- Workload: 422 kgf
- Connections: 3,7 kg
- Maximum pressure: 70 bar (1015 PSI)
- Connection: T-fitting 10 mm (3/8”) with air vent (HS868)
Technical data
| Manufacturer | Vetus |
| Article number | OBC250A |
Need help choosing the right solution or with installation? Write to us – we are happy to help.
