Description

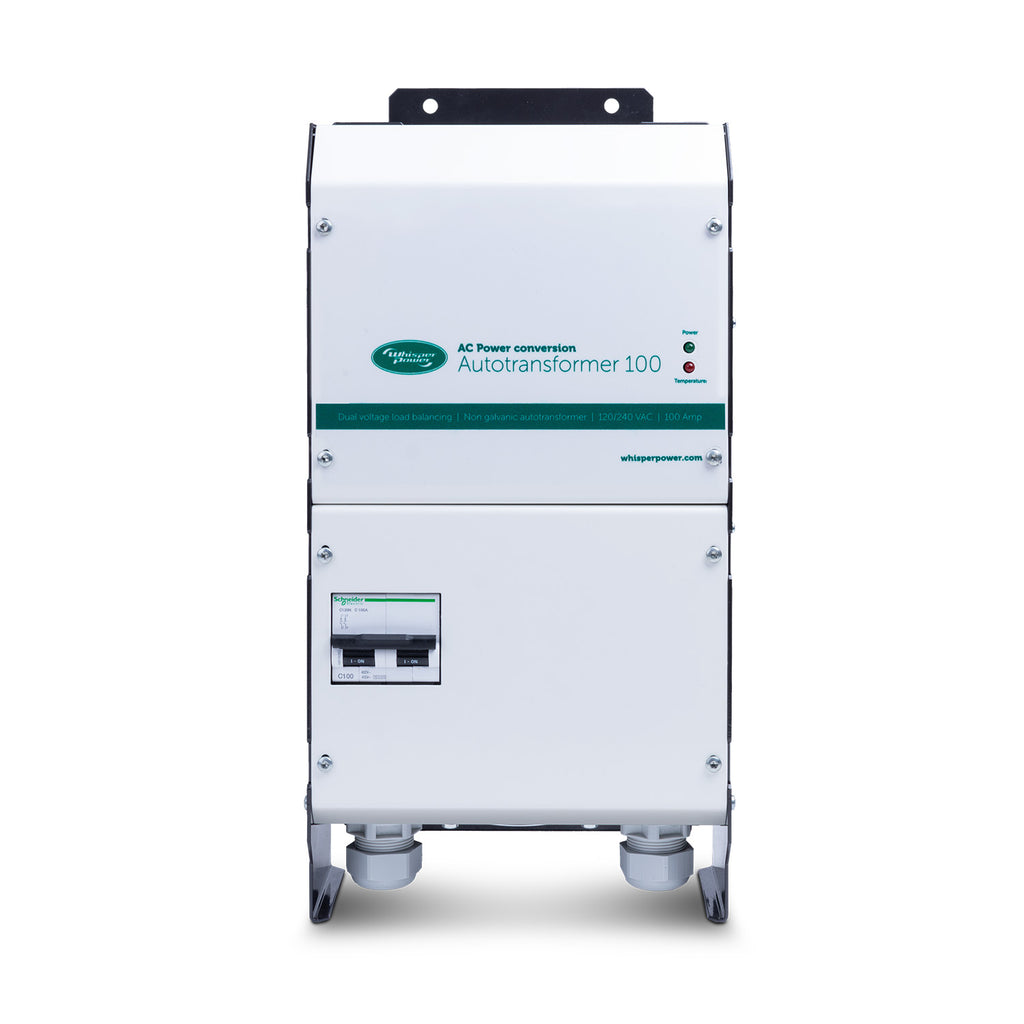

The WhisperPower Autotransformer is used when a split-phase (single phase three wire) system or a single outlet different to the generator or inverter outletvoltage is required. In this way a nominal output of 240 VAC may be converted to split-phase dual 120 VAC or single 120 VAC / 60 Hz as used in USA and Canada.
Technical data
| Manufacturer | WhisperPower |
| Article number | 61224100 |
| Main specifications | |
| Circuit breaker protection | 100 A double-pole |
| Max. feed-through current | 100 A @ 240 V |
| In/ Output voltage | 120 V / 240 V |
| In/ Output Frequency | 60 Hz only |
| Max. Neutral Current | 30 A continuous |
| Soft-start provision | No |
| Cooling | Temperature controlled forced air cooling |
| Audible Noise | < 53 dB(A) max. |
| Transformer Temperature Class | Class F (100K) |
| Transformer Insulation Class | Class B (130°C) |
| No-load consumption | 77 mA |
| Voltage regulation | < 5% |
| Weight | < 9 kg |

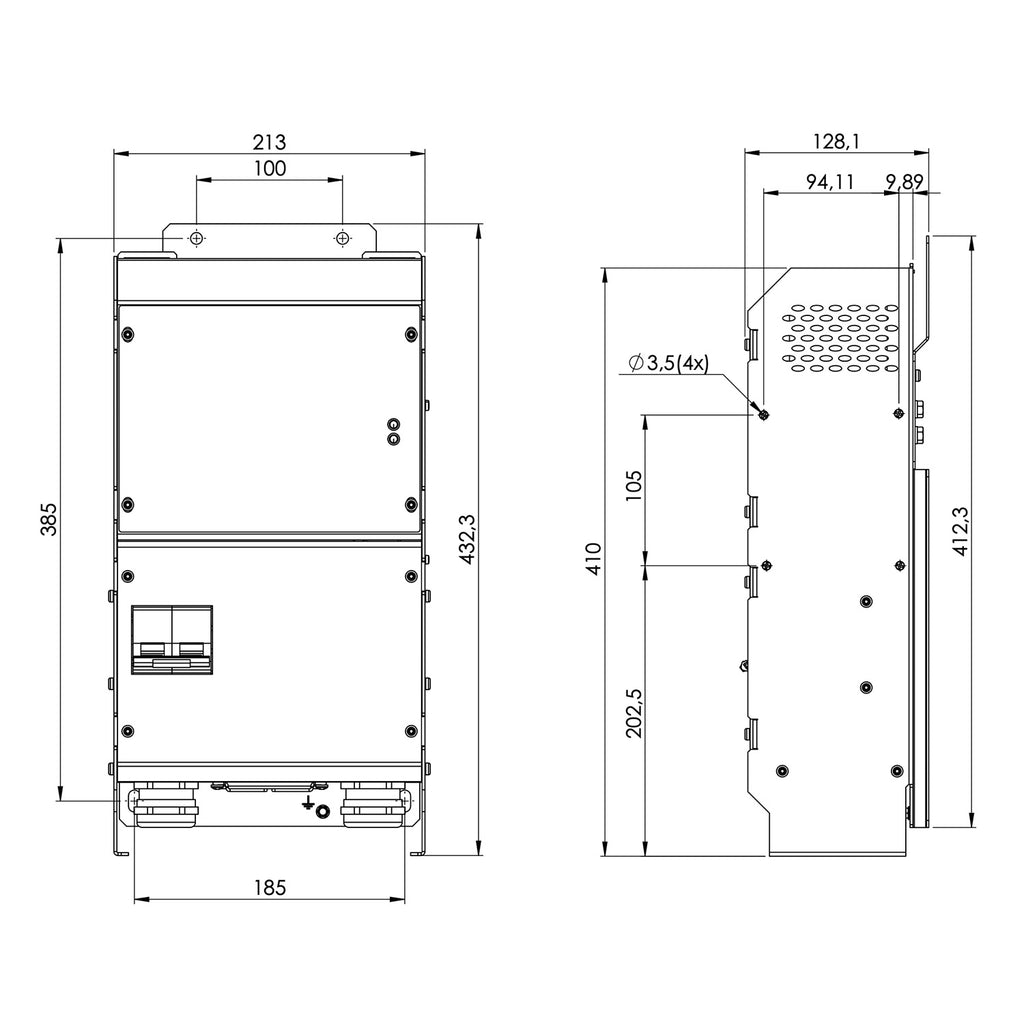

| Dimensions ( H x W x D ) | 432.3 x 213 x 128 |
Documents: Datasheet · User manual
