Description
Suitable for:
- Whisper SC 10
- Whisper SQ 6

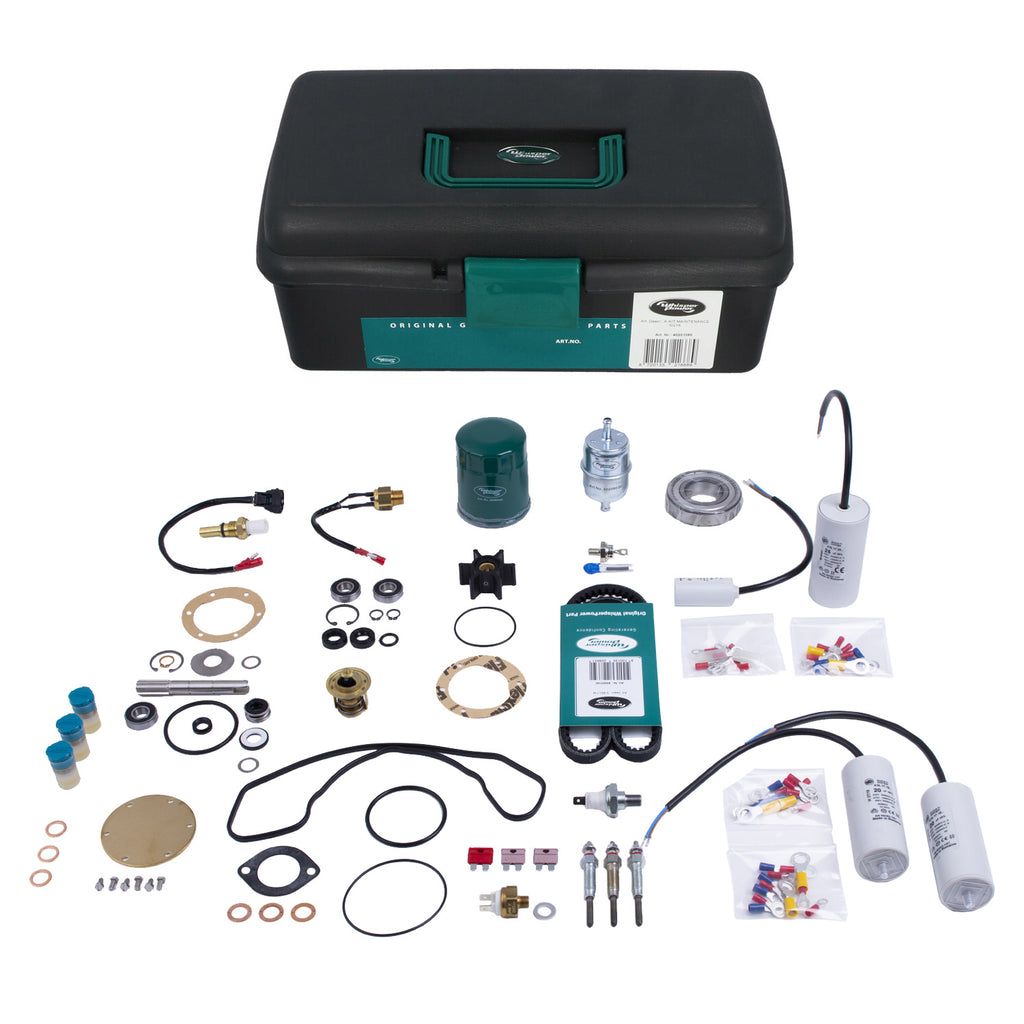

This maintenance kit includes the following parts:
| Part description: | Quantity: |
| B-kit maintenance impellerpump | 1 |
| Oil filter including valve | 1 |
| Impeller cooling waterpump + gasket | 1 |
| Fuel filter WP | 1 |
| Exhaust switch kit | 1 |
| Diode replacement kit | 1 |
| Copper gasket ring 12X18X1.5 MM | 3 |
| O-ring 56X3.5 Cooling water pump | 1 |
| Bearing 35X72X17 MM | 1 |
| O-ring 72X2 Alternator bearing | 1 |
| Gasket fuel return injector | 3 |
| Gasket thermostat housing | 1 |
| Glow plug | 3 |
| Thermostat 76.5C | 1 |
| Nozzle tip injector | 3 |
| V-belt | 1 |
| Gasket rocker cover | 1 |
| Screws impellerpump stainless steel ZKGR M4X8 | 6 |
| Cover impellerpump | 1 |
| Switch coolant temperature 110C M16X1.5 NC | 1 |
| Oil pressure switch 0.5Bar – Single pole | 1 |
| Temperature switch M10X1 75C | 1 |
| Fuse blade 3A 32V Violet | 2 |
| Fuse blade 10A 32V Red | 1 |
| Capacitor 20uF 475V cable kit Class B 60Hz | 2 |
| Capacitor 25uF 475V cable kit Class B 60Hz | 1 |
| Capacitor 2uF 475V cable kit Class B 60Hz | 1 |
Technical data
| Manufacturer | WhisperPower |
| Article number | 40201761 |
Documents: Maintenance kit contents
Genuine WhisperPower spare part. Not sure if it fits your generator? Send us the generator model and serial number – we will check compatibility.
