Description

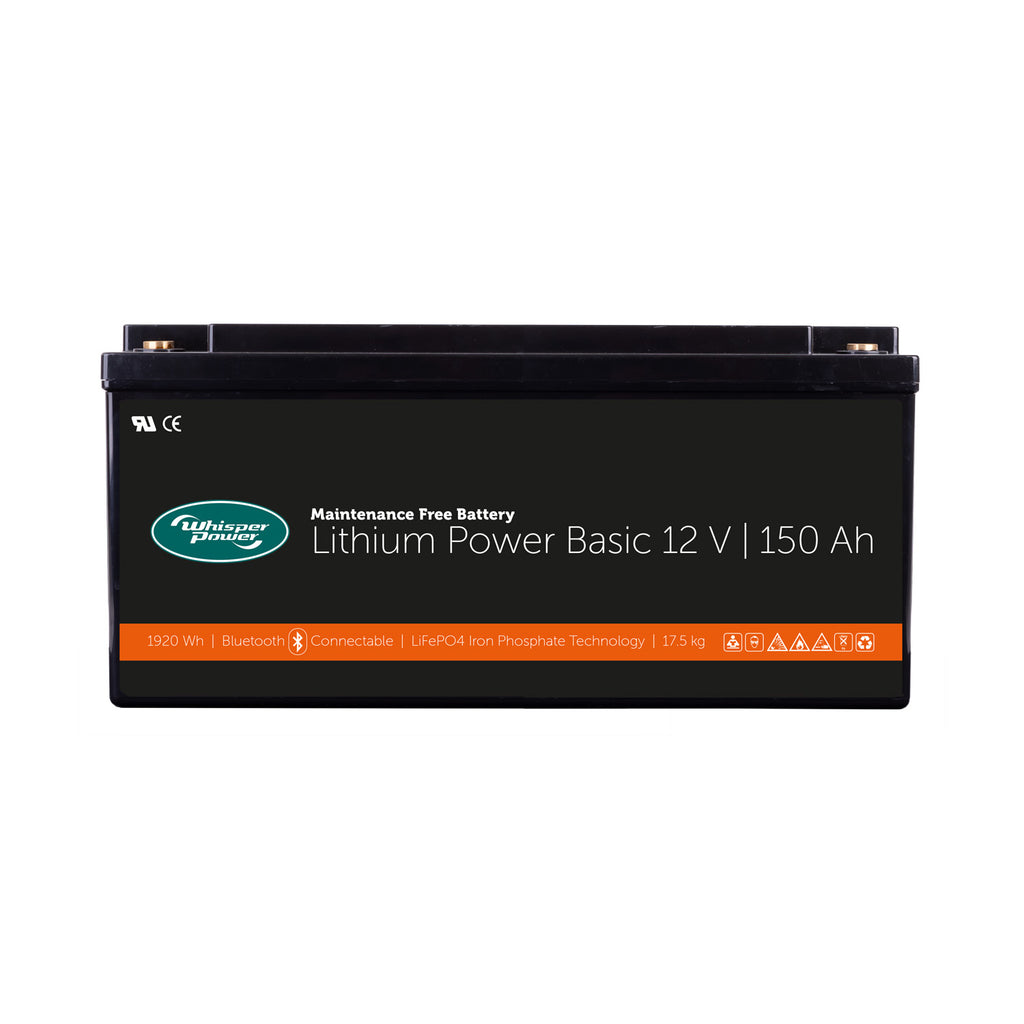

Our Lithium Power Basic 12 V – 150 Ah batteries are a great alternative to conventional lead acid batteries in any application field. By utilizing advanced, safe LFP technology, WhisperPower provides the best energy storage solution. Users can relax and enjoy freedom where ever they go. Lithium Power Basic 12 V – 150 Ah batteries ensure the lowest possible energy losses and superfast charging in combination with the safe LiFePO4 chemistry.
Technical data
| Manufacturer | WhisperPower |
| Article number | 40291203 |
| Length x width x height | 483 x 170 x 240 mm (19 x 6.7 x 9.4 inch) |
| Weight | 17.5 kg (38.58 lbs) |
| Nominal voltage | 12.8 V |
| Rated capacity | 150 Ah |
| Energy | 1920 Wh |
| Cycle life | >2000 cycles @ 1C,100% DOD |
| Terminal type | M8 |
| Battery housing | ABS,UL-94V-0 |
| Housing protection | IP56 |
| CellType-chemistry | LiFePO4 Cylindrical Cell |
| Charge parameters | |
| Charge Method | CC-CV |
| Charge Voltage | 14.4 ~ 14.8 V |
| Recommended Float Voltage | 13.8 V |
| Recommended Charge Current | 75 A |
| Maximum Charge Current | 150 A |
| BMS Charge Cut-off Voltage | 15.6 V |
| Discharge parameters | |
| Continuous Discharge Current | 150 A |
| Peak Discharge Current | 250 A (<10 seconds) |
| Recommended Volt. Disconnect | 10 V |
| BMS Discharge Cut-off Voltage | 8 V |
| Reconnect Voltage | 9.2 V |
| Short Circuit Protection | 200~600 us |
| Temperature parameters | |
| Discharge Temperature | -20 to 60 C |
| Charge Temperature | 0 to 45 C |
| Storage Temperature | -20 to 60 C |
| BMS High Temperature Cut-off | 80 C (176 F) |
| Compliance parameters | |
| Certifications | UL1642 (cell), CE, IEC62133 & CB, KC, BIS |
Documents: Datasheet · User manual
