Description

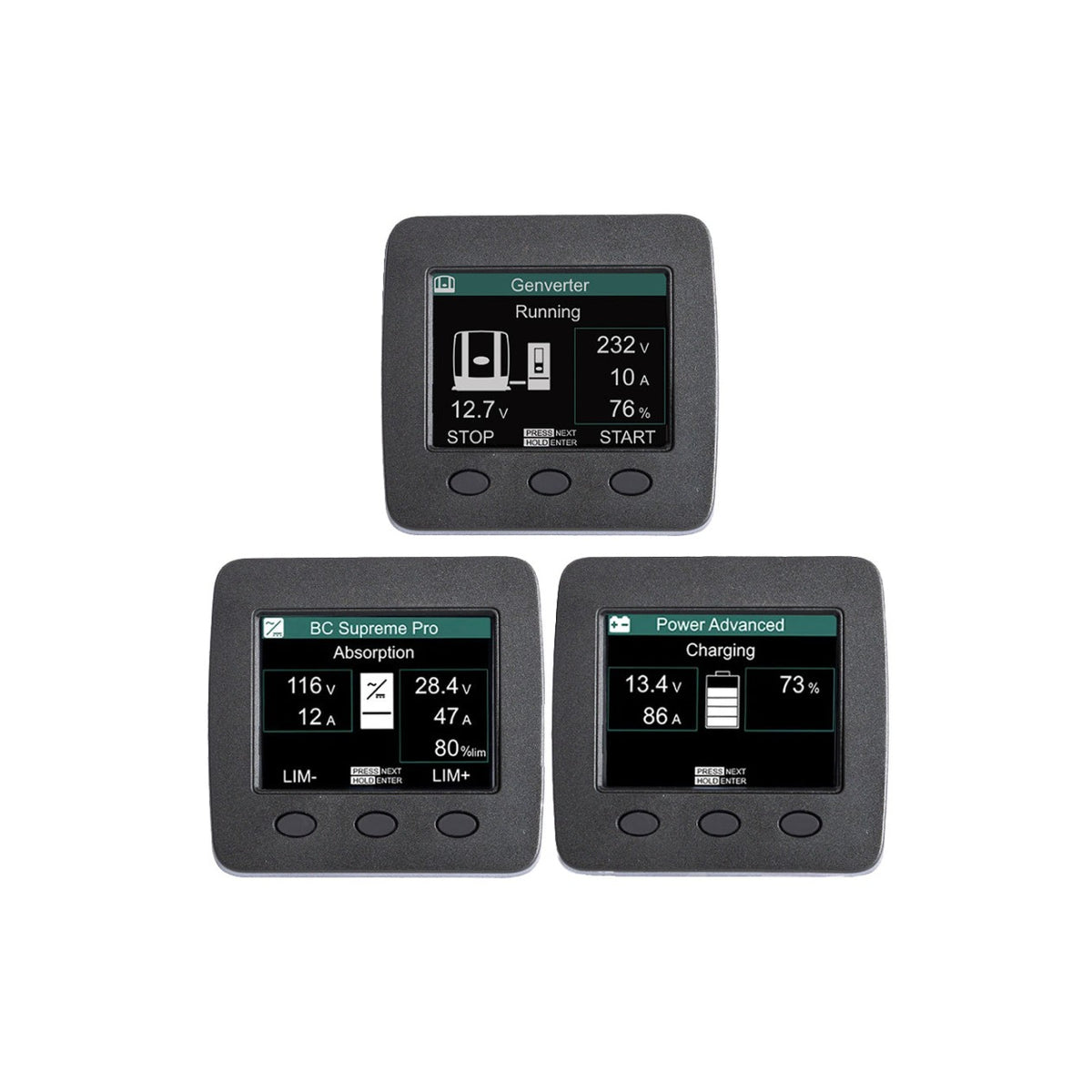

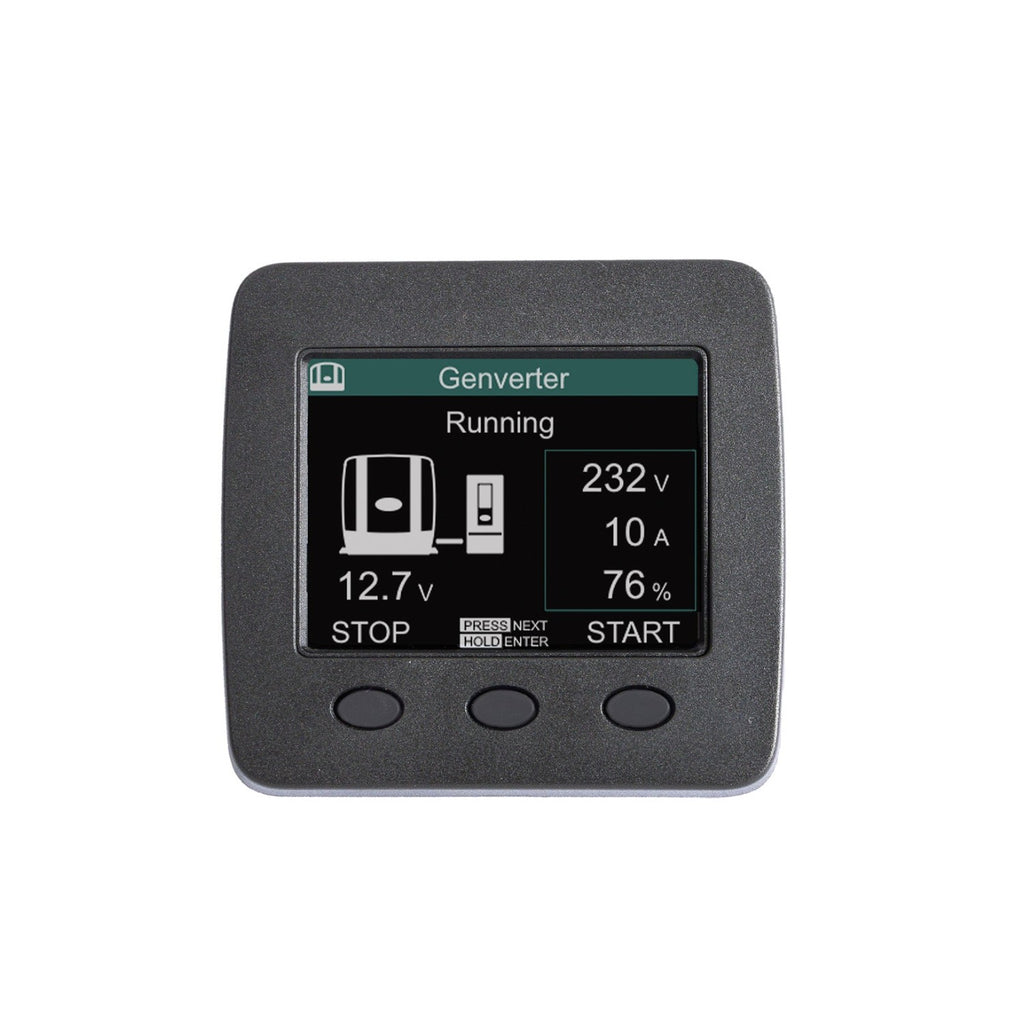

The OctoView 3 Inch is a user-friendly display that allows power systems to be monitored and operated locally. This display is ideal for diesel generators and smaller energy systems that do not require online connectivity. The OctoView 3 Inch provides real-time insights into key system information, such as voltages, currents, and potential fault messages.
Technical data
| Manufacturer | WhisperPower |
| Article number | 40280114 |
| Electrical | |
| Power supply voltage range | 9 – 32 VDC, reverse polarity protected |
| Power supply current operational | < 50 mA @ 12 VDC |
| Power supply current standby | < 10 mA @ 12 VDC |
| Display | 2.8 inch, 320x240 pixels, full colour TFT |

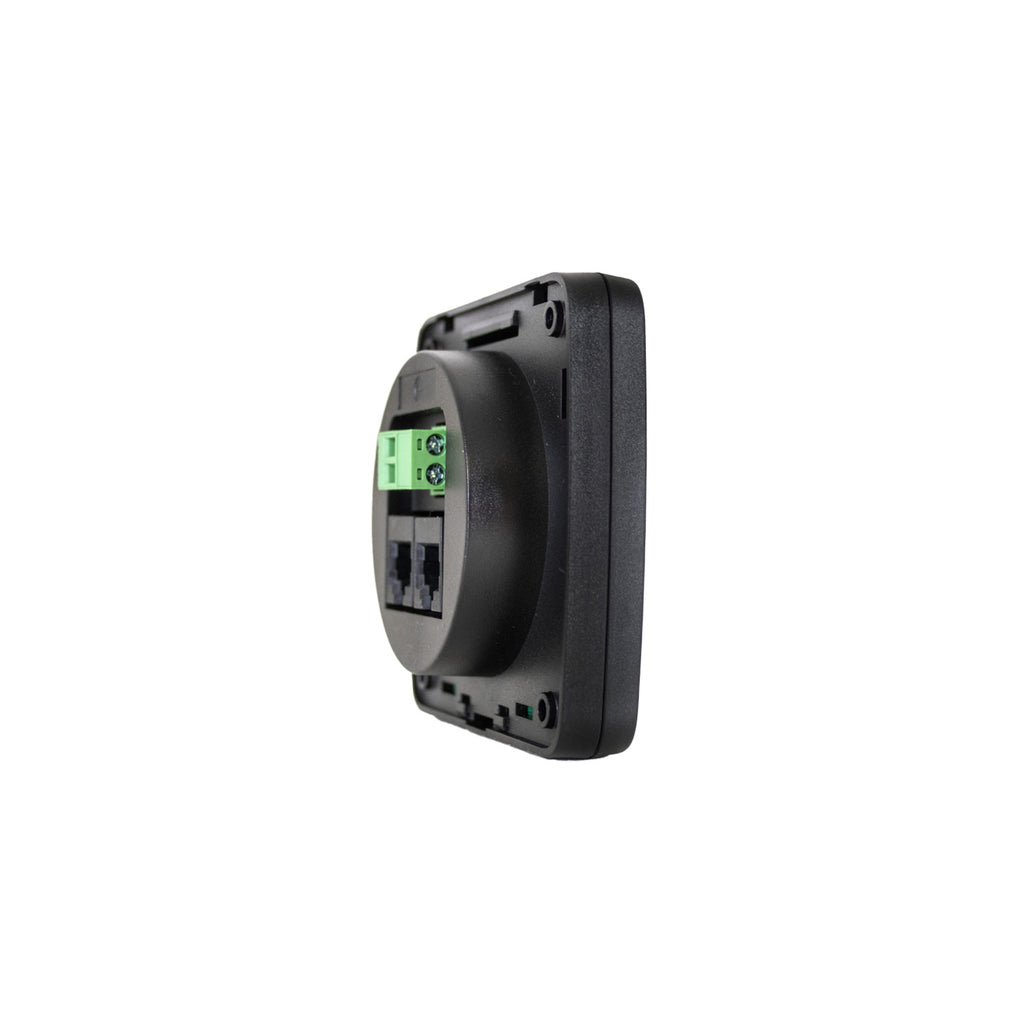

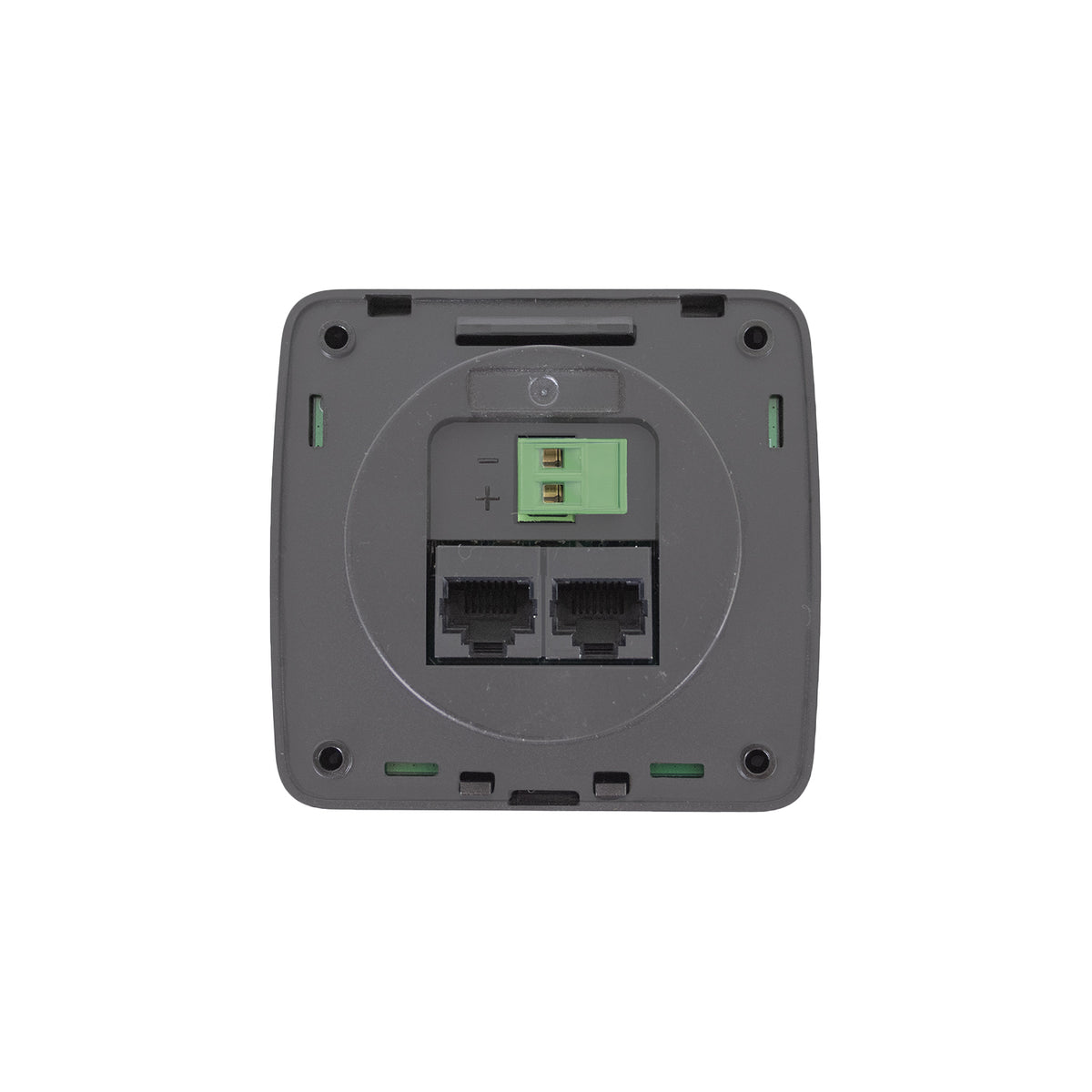

| Power supply | 2.5 mm pluggable screw terminal |
| WhisperConnect CAN bus | 2x RJ45, daisy chained |
| Mechanical specifications | |
| Dimensions | 85 x 78 x 31 mm |
| Weight | <0,5 kg |
| Protection degree | IP20 |
| Mounting | Panel mount (cutout: Ø65 mm, 4 screws included) |
| Delivered with | 4 screws for mounting, user manual |
| Regulatory compliance | |
| Certifications | CE conformity, EMC directive |
Documents: Datasheet · CE Certificate · Quick Start Guide · Brochure
